XC3062 采用SOT23-6封裝，是一款完整的單節鋰電池充電器，自帶OVP=6.8V,VIN輸入耐壓30V ,BAT耐兼容大小500-600mA充電電流，采用涓流，恒流，恒壓控制，SOT23-6封裝與較少的外部元件數目使得XC3062成為便攜式應用的理想選擇。XC3062可以適合USB電源和適配器電源工作。
XC3062采用了內部PMOSFET架構，加上防倒充電路，所以不需要外部檢測電阻器和隔離二極管。熱反饋可對充電電流進行自動調節，以便在大功率操作或高環境溫度條件下對芯片溫度加以限制。充滿電壓4.2V，充電電流可通過一個電阻器進行外部設置。當電池達到預設電壓后，充電電流將至設定值1/10，芯片將自動終止充電。
當輸入電壓（交流適配器或者USB電源）被拿掉時，XC3062自動進入一個低電流狀態，電流漏電流在1uA以下，XC3062的其他特點包括欠壓閉鎖，自動再充電以及兩個用于指示充電狀態的引腳。
GENERAL DESCRIPTION
The XC3062 Series is a complete constant
current & constant voltage linear charger for
single cell lithium-ion batteries. Its SOT23-6L
package and low external component counts
make the XC3062 Series ideally suited for
portable applications. Furthermore, the XC3062
Series is specifically designed to work within USB
power specifications.

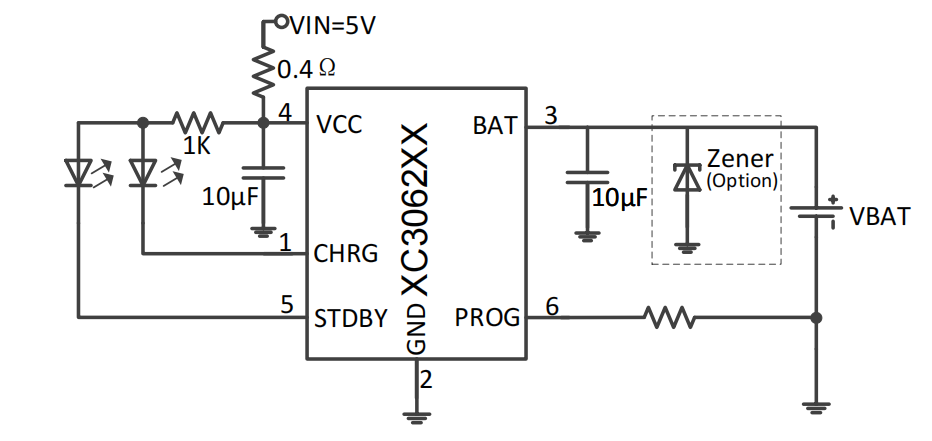

No external sense resistor is needed, and no
blocking diode is required due to the internal
MOSFET architecture. The charge voltage is fixed
at 4.2V/4.3V/4.35V/4.4V, and the charge current
can be programmed externally with a single
resistor. The XC3062 Series automatically
terminates the charge cycle when the charge
current drops to 1/10 the programmed value after
the final float voltage is reached.
When the input supply (wall adapter or USB
supply) is removed, the XC3062 Series
automatically enters a low current state, dropping
the battery current to less than 2.5uA. The Under
voltage lockout, automatic recharge and two
status pins to indicate charge and charge
termination.
FEATURES
30V standoff input voltage at VCC pin
Programmable Charge Current Up to 600mA
No MOSFET, Sense Resistor or Blocking Diode
Required
Complete Linear Charger in SOT23-6L Package
for single Cell Lithium-Ion Batteries
Charges Single Cell Li-Ion Batteries Directly from
USB Port
Preset 4.2V/4.3V/4.35V/4.4V Charge Voltage with
±1% Accuracy
Charge Current Monitor Output for Gas Gauging
Automatic Recharge
Charge state pairs of output, no battery and fault
status display
CC/10 Charge Termination
2.9V Trickle Charge Threshold
Soft-Start Limits Inrush Current
ESD HBM 2KV
Available in SOT23-6L Package
APPLICATIONS
Cellular Telephones, PDAs, MP3 /MP4 Players
E-cigarettes
Bluetooth
GPS Applications
