過充4.3V,過放2.8V，放電過流0.95A，充電過流0.95A，最大持續放電電流0.5A，帶過放自鎖功能，SOT23-3封裝，適用于TWS耳機，智能手表等產品。
GENERAL DESCRIPTION
The XB3153IS product is a high
integration solution for lithium
ion/polymer battery protection.
XB3153IS contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB3153IS is put into an ultra-small
SOT23-3 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XB3153IS has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 45mΩ RSS(ON)
·
Ultra-small SOT23-3 Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode: 2.8μ A typ.
- Power-down Mode: 0.1μ A typ.
·
RoHS Compliant and Lead (Pb) Free

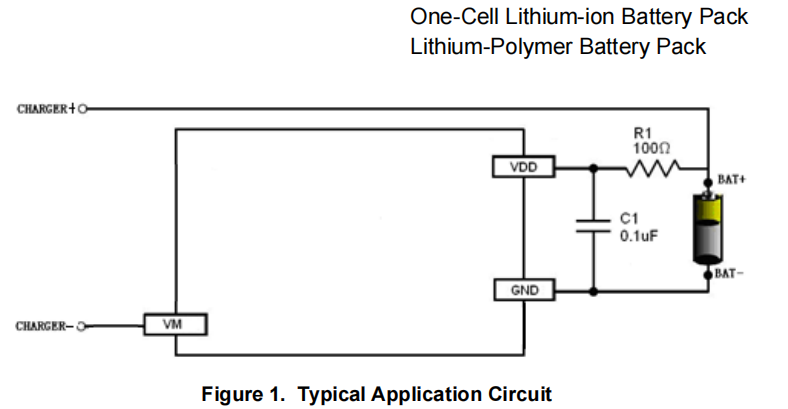

APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
