過充電壓4.3V-4.475V可選，過放2.4V,放電過流3.5A,充電過流3.5A，持續(xù)放電電流2A，SOT23-3封裝，適用于小風扇，充電倉,TWS耳機，掛脖耳機，數(shù)據(jù)線限流，LED等5V1A鋰電池產(chǎn)品，常用語搭配4054,4056等線性充電芯片使用。
GENERAL DESCRIPTION
The XB3303A series product is a high
integration solution for lithium
ion/polymer battery protection.
XB3303A contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB3303A is put into an ultra-small
SOT23-3 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XB3303A has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
· Protection of Charger Reverse
Connection
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
withEquivalent of 56mΩ RSS(ON)
· Ultra-small SOT23-3 Package
· Only One External Capacitor
Required
· Over-temperature Protection
· Overcharge Current Protection
· Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode: 2.8μA typ.
- Power-down Mode: 1.5μA typ.
· RoHS Compliant and Lead (Pb) Free
APPLICATIONS

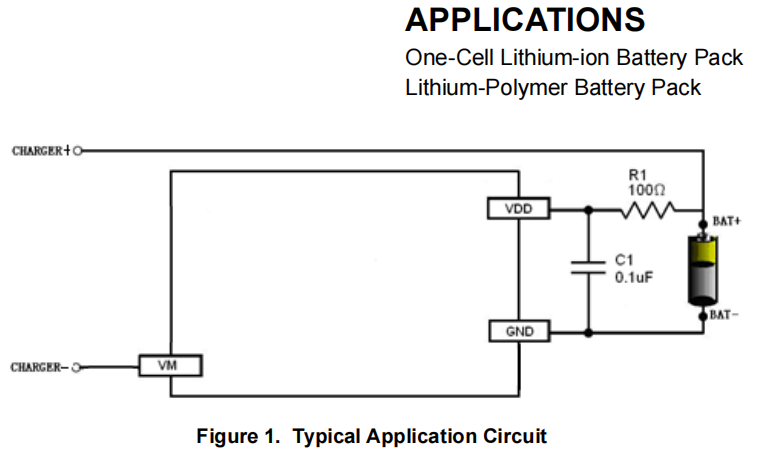

One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
