SOT23-3封裝，內(nèi)阻50mΩ，過充電壓4.3V±50mV，過放電壓2.4V±100mV，充電過流3A，放電過流3A，持續(xù)放電電流2.2A.
Features
• Protection of Charger Reverse Connection
• Protection of Battery Cell Reverse Connection
• Over-temperature Protection
• Overcharge Current Protection
• Two-step Overcurrent Detection:
Over Discharge Current
Load Short Circuiting
• Charger Detection Function
• 0V Battery Charging Function
• 50mΩ Low RSS(ON) Internal Power MOSFET
• Delay Times are generated inside
• High-accuracy Voltage Detection
• Low Current Consumption
Operation Mode: 0.7μA typ.
Power-down Mode: 0.5μA typ.
• Only One External Capacitor Required
• Available in SOT23-3 Package
• -40°C to +85°C Temperature Range
Applications
• One-Cell Li-ion Battery Pack
• Power Bank
• One-Cell Li-poly Battery Pack
• IOT Sensor/Electronic Toys/ Wearable Devices
General Description
The RY2200 is a high integration solution for lithium-ion/polymer battery protection. RY2200 contains internal
power MOSFET, high-accuracy voltage detection circuits and delay circuits. RY2200 has all the protection
functions required in the battery application including overcharging, over discharging, overcurrent and load short
circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The
low standby current drains little current from the cell while in storage. The device is not only targeted for digital
cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long
term battery life.

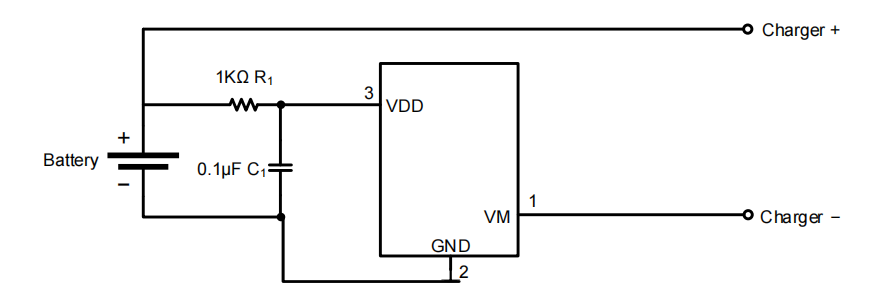

The RY2200 requires a minimal number of readily available, external components and is available in a space saving
SOT23-3 package.
