過充電壓4.3V/4.425V可選，針對4.2V標準電芯以及4.35V標準電芯，過放電壓2.4V/2.8V可選，過放電流3A，過充電流3A，持續放電電流2A，適用于1.5A以內的鋰電池產品，經常用于搭配4054,4056等充電芯片.
GENERAL DESCRIPTION
The XB4302 series product is a high
integration solution for lithium-
ion/polymer battery protection. XB4302
contains advanced power MOSFET,
high-accuracy voltage detection circuits
and delay circuits. XB4302 is put into an
ultra-small TSOT23-4 package and only
one external component makes it an
ideal solution in limited space of battery
pack.

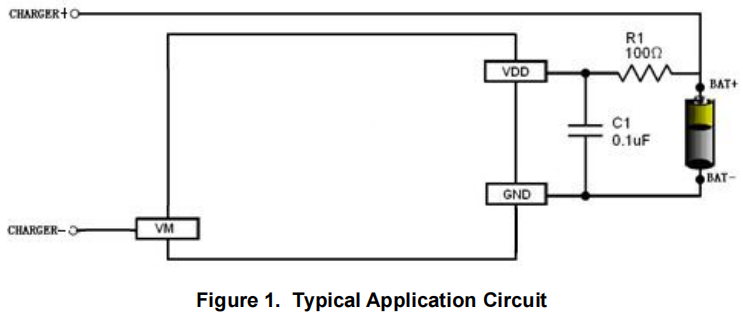

XB4302 has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long-
term battery life.
FEATURES
· Protection of Charger Reverse
Connection
· Protection of Battery Cell Reverse
Connection without external load
· Integrate Advanced Power MOSFET
with Equivalent of 47mΩ RSS(ON)
· Ultra-small TSOT23-4 Package
· Only One External Capacitor
Required
· Over-temperature Protection
· Overcharge Current Protection
· Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode: 2.8μA typ.
- Power-down Mode: 1.5μA typ.
· RoHS Compliant and Lead (Pb) Free
