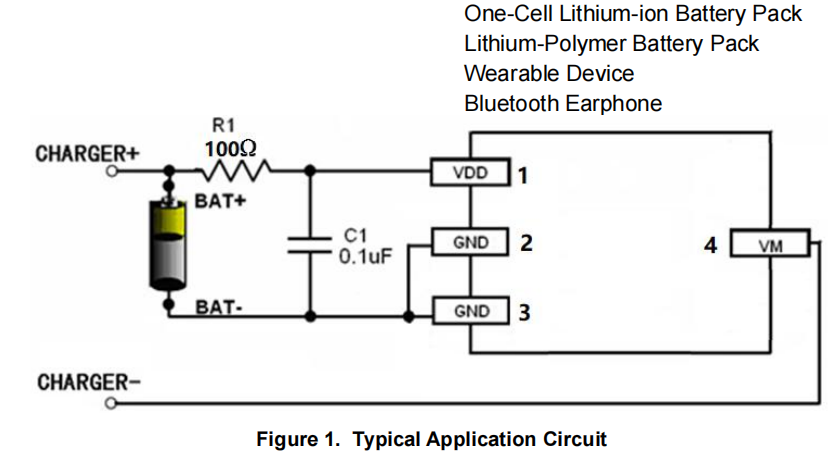

過充4.275-4.475V可選,過放2.8-3.0V可選，放電過流0.4A，充電過流0.4A，最大持續放電電流0.2A，DFN1*1封裝，和賽芯所有同類型封裝都直接pin，外圍電路亦一樣，一顆電阻一顆電容，適用于TWS耳機，智能穿戴等產品。
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
with Equivalent of 44mΩ RDS(ON)
· DFN1X1x0.37-4 Package
· Low Overcharge Release Voltage
· Over-temperature Protection
· Overcharge Current Protection 0.4A
· Two-step Overcurrent Detection:
-Overdischarge Current 0.4A
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode:1.5μA Typ.
· RoHS Compliant and Lead (Pb) Free
