過充4.3-4.475V可選，針對(duì)不同電池電芯，過放2.4-2.8V可選，放電過流18A，充電過流14A，最大持續(xù)放電電流9A，采用ESOP8封裝，單顆適用于22.5W的移動(dòng)電源，常用于搭配IP5328以及智融系列快充芯片使用。
GENERAL DESCRIPTION
The XB8989AF Series product is a high
integration solution for lithium
ion/polymer battery protection.
XB8989AF contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB8989AF is put into an SOP8-PP
package and only one external
component makes it an ideal solution in
limited space of battery pack.
XB8989AF has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.

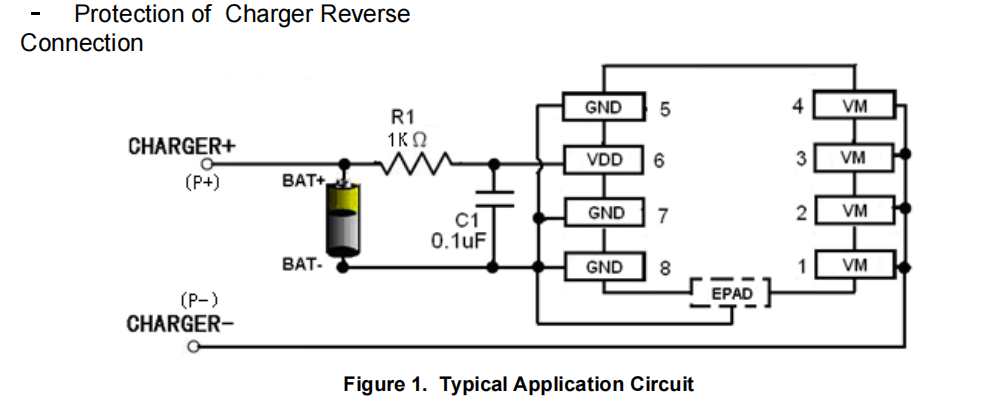

FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 7.3mΩ RSS(ON)
·
SOP8-PP Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode:7μ A typ.
- Power-down Mode: 4μ A typ.
·
RoHS Compliant and Lead (Pb) Free
APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
Power Bank
