過充4.25V/4.475V可選,適用于不同電芯，過放2.4V/2.9V可選，放電過流9A，充電過流6A，持續放電電流5A，0V可充，ESOP8封裝，和市面上的IP3005,JA9888等完全可pin，適用于5V，2.A移動電源，個人護理等產品。
GENERAL DESCRIPTION
The XB8089D0 product is a high
integration solution for lithium
ion/polymer battery protection.
XB8089D0 contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB8089D0 is put into an SOP8-PP
package and only one external
component makes it an ideal solution in
limited space of battery pack.
XB8089D0 has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 20mΩ RSS(ON)
·
SOP8-PP Package
·

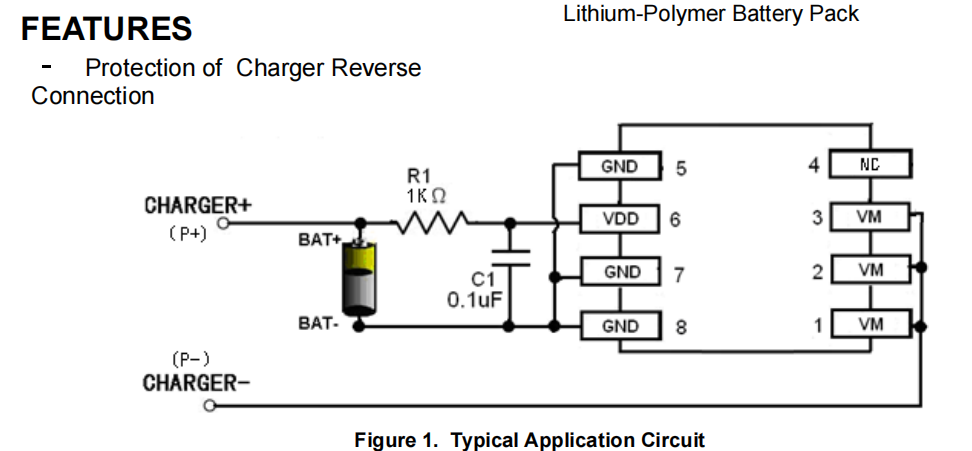

Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode:6μ A typ.
- Power-down Mode: 3μ A typ.
·
RoHS Compliant and Lead (Pb) Free
APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
