過充電壓4.3V可，過放2.4V,放電過流5A,充電過流3.8A，持續(xù)放電電流2.5A，SOT23-5封裝，適用于小風(fēng)扇，充電倉等5V1A鋰電池產(chǎn)品，常用語搭配4054,4056等線性充電芯片使用。
GENERAL DESCRIPTION
The XB5556A0 product is a high
integration solution for lithium
ion/polymer battery protection.
XB5556A0 contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB5556A0 is put into an ultra-small
SOT23-5 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XB5556A0 has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 37mΩ RSS(ON)
·
Ultra-small SOT23-5 Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode: 2.8μ A typ.
- Power-down Mode: 1.5μ A typ.
·
RoHS Compliant and Lead (Pb) Free
APPLICATIONS

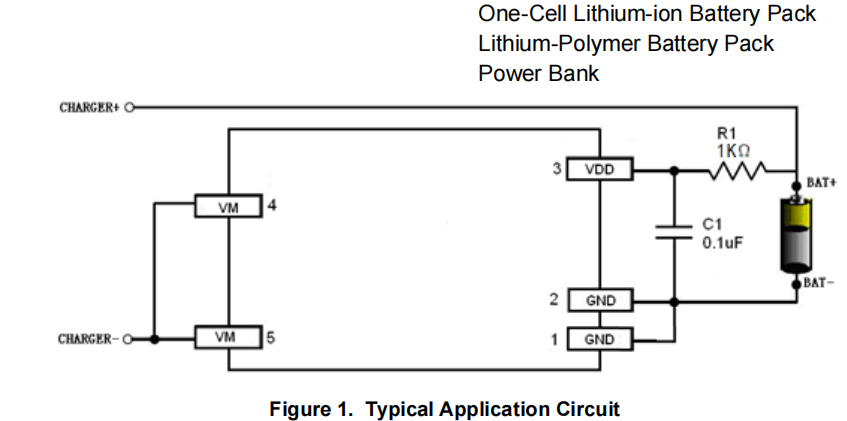

One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
